130.00 RON

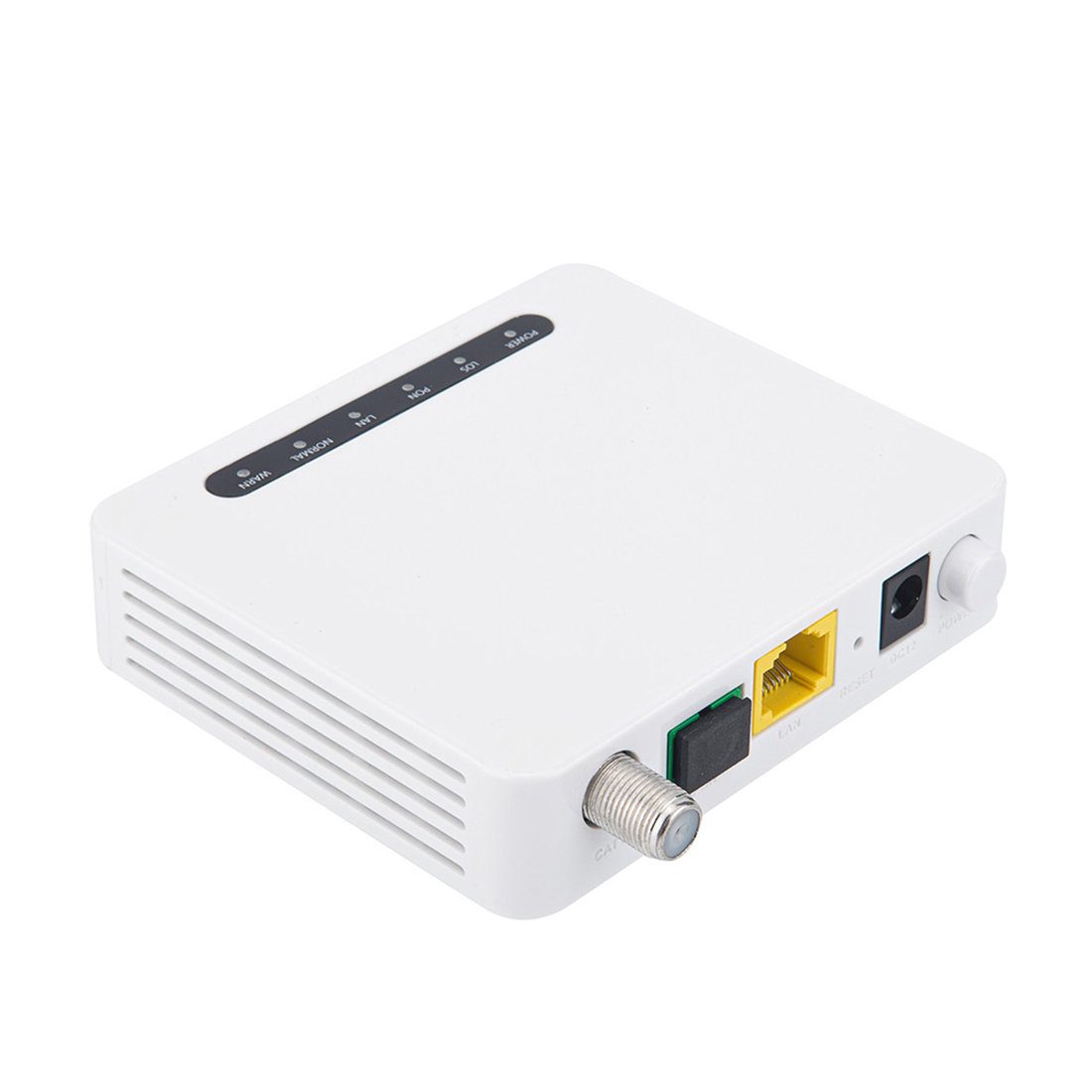

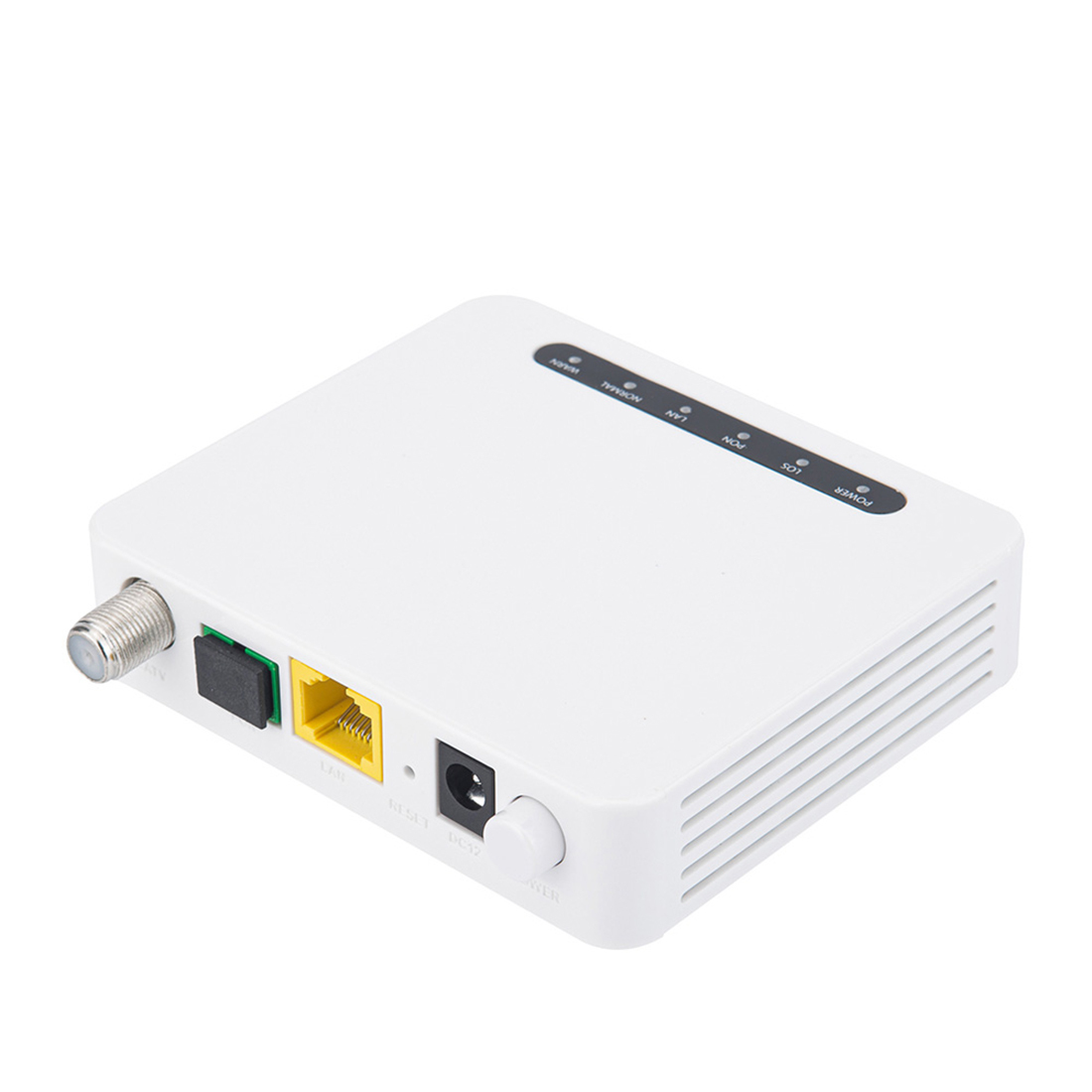

CX01010R01D - XPON ONU 1GE CATV
Specification
| Technical Item |
Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+5dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
| LAN interface |
1x10/100/1000Mbps adaptive Ethernet RJ45 port |
| CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED |
6 LED, For Status of PWR、LOS、PON、LAN1~LAN2、 NORMAL(CATV)/FXS |
| Push-Button |
2. Used for power on/off and reset. |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -10℃～+70℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.4kg |
| Product size |
95mm×82mm×25mm(L×W×H) |

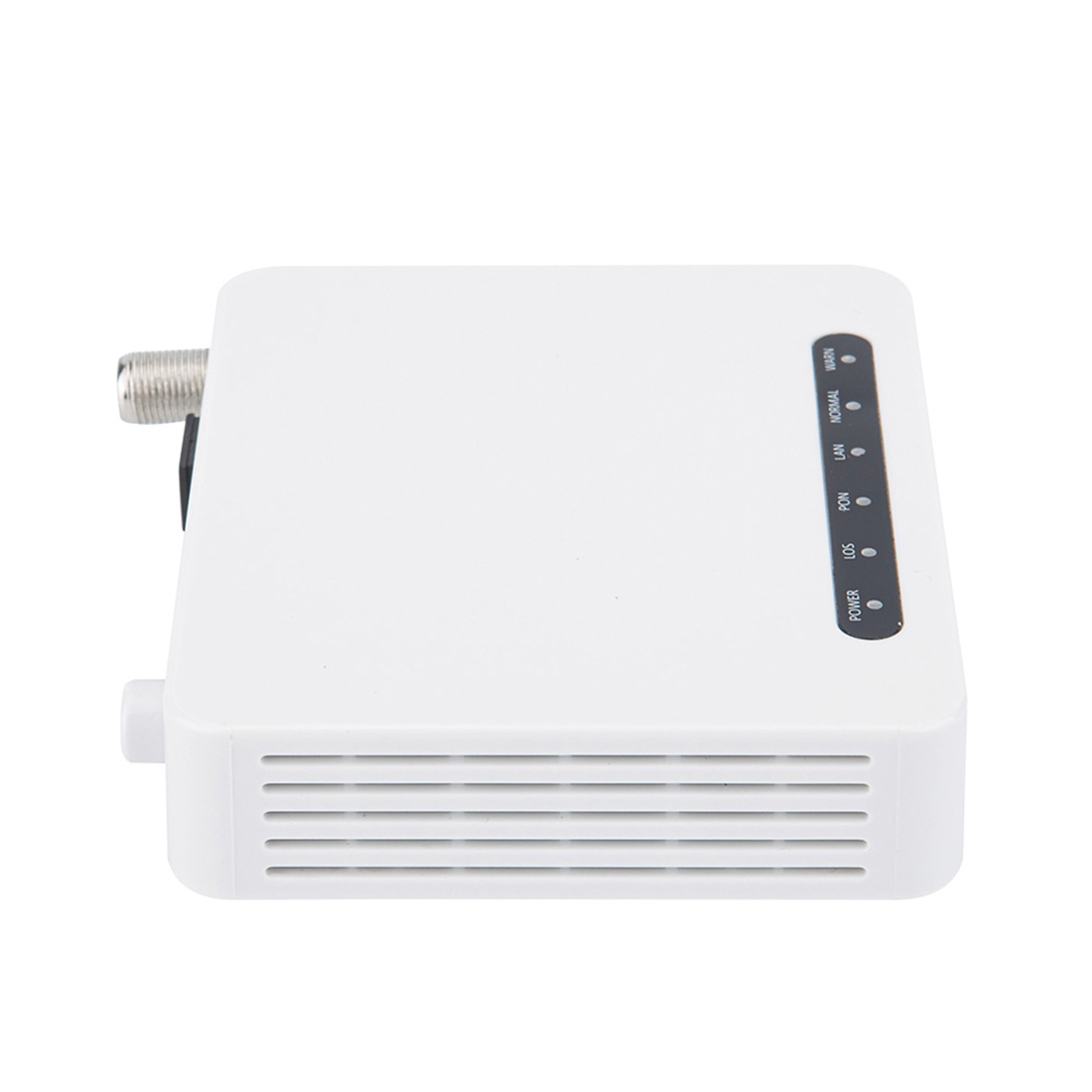

Panel lights and Introduction
| Pilot | Status | Description |
| POWER |
On | The device is powered up. |
| Off | The device is powered down. | |
| LOS |
Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON |
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN |
On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. | |
| NORMAL |
On | Input optical power is between -15dbm and 2dBm |
| Off | Input optical power is higher than 3dbm or lower than -15dBm | |
| WARN |
On | Input optical power is higher than 2dBm or lower than -15dBm |
| Off | Input optical power is between -15dBm and 2dBm |
