Statie analogica cu modulatie digitala ce permitre transpunerea a 24 de canale din IP in RF. Contine 2 intrari Gigabit si 1 intrare SFP pt. fluxul de intrare si 1 itrare IP pt. management, nivelul maxim de iesire a semnalului RF este de 112 dB. Permite la iesire formatele PAL,SECAM si NTSC, Recunoaste semnale audio de tip AAC. Are un raport C/N de 60 dB la un nivel de iesire de 100dB. Transcodarea din IP in RF digital este motivul pt. care calitatea imaginii la iesire este net superioara statiilor analogice clasice.

Descarca

Fisa Tehnica

37,500.00 RON

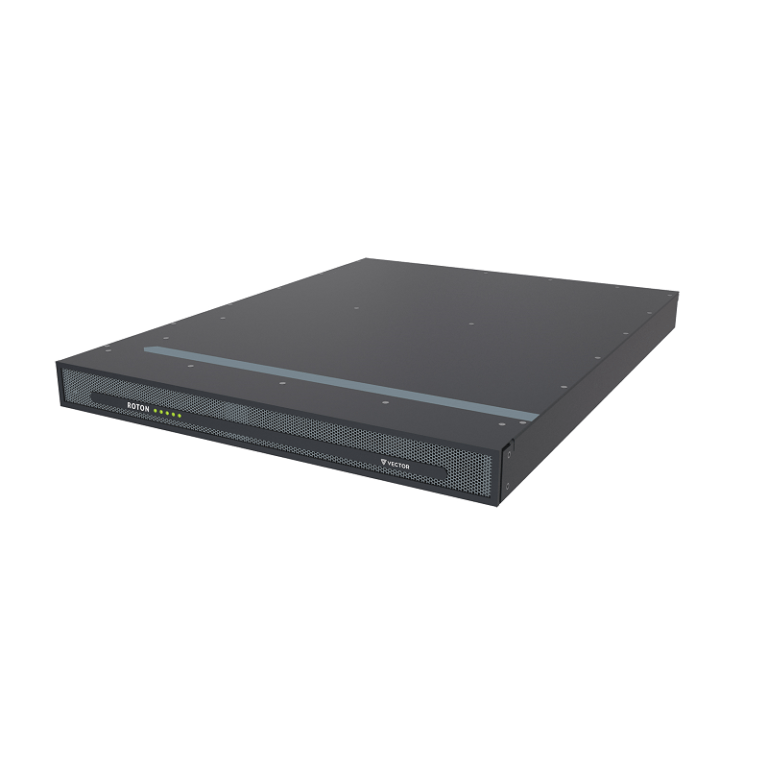

ROTON F 24 IP to PAL Modulator

GBE (IP) INTERFACE

- IP INPUT throughput up to 1 Gb/s (up to 10 Mb/s per service)

- Supported streams SPTS/MPTS

- Supported protocols UDP

- Transmission type Multicast

- Transmission stream MPEG-2 ISO/IEC 13818 MPEG-4 ISO/IEC 14496



ANALOG OUTPUT



- Number of carriers Up to 24 (One RF port)

- Modulation PAL/SECAM (VSB), FM, NICAM, A2

- Frequency range 40 - 1218 MHz

- Output level typical 104 dBµV

- CNR (after internal combining)

- SNR (after internal combining) 60 dB > 53 dB



TECHNICAL SPECIFICATION

- Video format MPEG-2 HD/SD MP@ML H.264/A VC High Level 4.1 high profile

- Image format PAL, SECAM

- Aspect ratio 4:3 / 16:9

- Image resolution up to 1080i

- Audio formats MPEG-1 Layer II

- Sampling frequency 48, 44.1, 32

- Encoding bit rate 32…384 kbps

- Output volume adjustment 0 - 100 %

MANAGEMENT AND CONFIGURATION

- Embedded WEB server √

OTHERS

- Housing 1 RU, 19’’

- Dimensions (W x H x L) 483 x 44 x 502 mm

- Weight 6 kg

- Power supply voltage 100…240 V AC

- Power consumption 130 W

- Operating temperature 5…50 ºC Humidity 80 %
